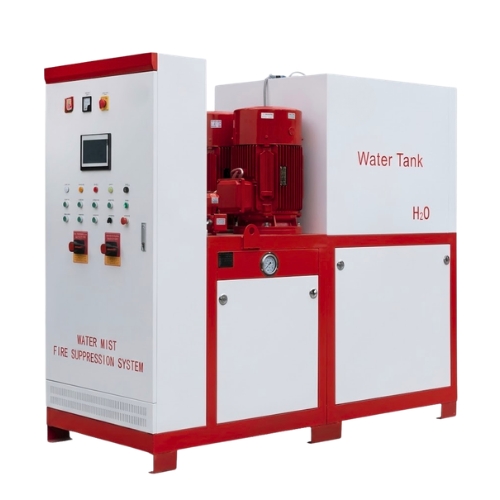

High Pressure Water Mist Fire Suppression (Pump Unit)

High Pressure Water Mist Fire Suppression is an advanced fire protection technology that uses highly pressurized water to produce extremely fine droplets through specially engineered nozzles. According to NFPA research material, high-pressure water mist systems operate above 34 bar and generate very small droplets that can rapidly absorb heat and, through evaporation, contribute to cooling and localized oxygen displacement.

A High Pressure Water Mist Fire Suppression System typically combines a high-pressure pump or pressure source, water storage or supply arrangement, specialized piping, control equipment and engineered discharge nozzles. Commercial systems are available for specific hazards and are tested and approved for defined applications rather than being universally applicable to every fire scenario.

The technology is particularly attractive where effective fire control is needed while limiting the amount of water discharged compared with many conventional water-based systems. Manufacturer literature highlights applications ranging from machinery and turbine spaces to marine, industrial and other high-value environments.

Specification:

Product Type: High Pressure Water Mist

Brand: Any

Origin: China

NFPA Classification: Above 34 bar

Extinguishing Medium: Water

Main Equipment: Pump / Pressure Source

Discharge: Fine Mist Nozzles

Protection Method: Local / Zoned / Total Flooding

Detection: Automatic / Manual Options

Piping: High-Pressure Rated

Hazard: Application Specific

Certification: CCC, CE, NFPA 750, ISO9001

Approval: Product/System Specific

Commissioning: Required

Maintenance: Scheduled Inspection & Testing

Features of High Pressure Water Mist Fire Suppression

1. High-pressure water delivery
2. Very fine water droplet production
3. Specialized water mist discharge nozzles
4. High-pressure pump or pressure source
5. Engineered piping and fittings
6. Rapid heat absorption
7. Fire suppression and fire-control capability
8. Reduced water discharge compared with many conventional systems
9. Automatic detection and release options
10. Local application configurations
11. Zoned system configurations
12. Total-flooding configurations for suitable hazards
13. Stainless-steel piping options on selected systems
14. Dedicated control and monitoring equipment
15. Tested and approved system configurations
16. Suitable for selected Class A and Class B fire hazards

High- Pressure water mist installations require specialized piping, fittings and power arrangements, and their performance depends strongly on the selected nozzle and validated system design.

Benefits of High Pressure Water Mist Fire Suppression (Pump Unit)

Fine Mist for Rapid Heat Absorption

The main advantage of Water Mist Fire Suppression is the ability to create very small droplets with a large surface area relative to their volume. These droplets can absorb substantial heat as they evaporate, helping cool the fire environment.

Lower Water Consumption Potential

A properly engineered water mist installation can use considerably less water than conventional fire suppression methods in appropriate applications. Johnson Controls describes water mist as a solution that can reduce water use while providing effective fire control.

Reduced Secondary Water Damage

Lower water discharge can be particularly valuable in areas containing sensitive, expensive or difficult-to-replace equipment. Water mist is therefore considered for selected high-value assets where traditional large-volume water discharge may create additional consequences.

Rapid Cooling

The fine droplets can evaporate quickly when exposed to intense heat, absorbing energy from the surrounding environment and supporting fire suppression or temperature control.

Flexible Fire Protection Strategy

Water mist systems can be designed for different protection objectives, including fire extinguishment, suppression, control, temperature control and exposure control, depending on the application and validated system design.

Advantages of High Pressure Water Mist Fire Suppression (Pump Unit)

1. Fine water droplet technology
2. High heat absorption capability
3. Reduced water demand in suitable applications
4. Lower discharge volume than many conventional water systems
5. Suitable for selected sensitive assets
6. Rapid cooling effect
7. Local application options
8. Total-flooding options for suitable enclosures
9. Automatic detection and activation possibilities
10. Compact pipework options in selected designs
11. Reduced drainage requirements in some applications
12. Suitable for specialized industrial hazards
13. Available with tested and approved system configurations
14. Environmentally favorable water-based extinguishing medium

Applications of High Pressure Water Mist Fire Suppression (Pump Unit)

1. Turbine enclosures
2. Machinery rooms
3. Power generation facilities
4. Transformer protection
5. Data centers
6. Marine vessels
7. Engine rooms
8. Industrial process areas
9. Oil and gas facilities
10. Offshore platforms
11. Hydraulic equipment
12. Cable and equipment spaces
13. High-value equipment rooms
14. Special-hazard areas
15. Selected commercial facilities

Water mist systems are used across a broad range of applications, but the applicable system must be selected from a tested and approved configuration for the particular hazard. Johnson Controls, for example, lists high-pressure systems for machinery spaces and turbines, while NFPA research references applications including turbine/machinery enclosures, hydraulic piping equipment and chemical processes.

Water Mist Fire Protection System Design

A proper water mist fire protection system design is highly application-specific.

It should consider:

1. Hazard type
2. Fire scenario
3. Protection objective
4. Room/enclosure geometry
5. Ceiling height
6. Obstructions
7. Nozzle characteristics
8. Operating pressure
9. Flow rate
10. Required discharge duration
11. Water supply
12. Pump capacity
13. Pipe materials
14. Detection system
15. Release method
16. Drainage
17. Equipment compatibility
18. Applicable approvals and standards

FSSA identifies system design approach, nozzle types, pipe types, system listings and approvals, commissioning, inspection, testing and maintenance as important subjects when evaluating water mist systems.

NFPA 750 is the principal NFPA standard associated with water mist fire protection systems, with current and future editions listed by NFPA.

Why Choose High Pressure Water Mist Fire Suppression?

Choose High Pressure Water Mist Fire Suppression when a properly engineered project requires effective fire suppression or control with finely atomized water and potentially lower water demand than conventional water-based solutions.

Key reasons include:

1. Fine droplet technology
2. Excellent cooling capability
3. Lower water use in suitable applications
4. Reduced water discharge
5. Protection of selected high-value equipment
6. Flexible local or zoned designs
7. Automatic detection and activation options
8. Suitable solutions for specialized hazards
9. Tested and approved system configurations
10. Water-based extinguishing medium

High-pressure water mist is especially attractive for specialized hazards where conventional suppression approaches may use significantly more water, but its suitability must always be established through application-specific engineering and testing.

Conclusion

High Pressure Water Mist Fire Suppression is an advanced fire protection approach that uses highly pressurized water and specialized nozzles to produce fine droplets capable of absorbing significant heat. NFPA research identifies high-pressure water mist as systems operating above 34 bar, while commercial technologies demonstrate applications ranging from machinery and turbine protection to marine and other specialized hazards.

For projects in Bangladesh, the correct High Pressure Water Mist Fire Suppression System should be selected through application-specific engineering, using tested/listed system configurations, appropriate nozzle arrangements, compatible high-pressure equipment and the applicable requirements of NFPA 750 and the Authority Having Jurisdiction.
