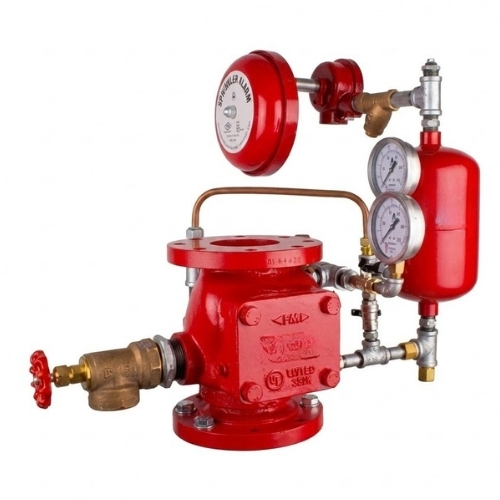

Wet Alarm Check Valve

The Wet Alarm Check Valve is a specialized fire protection valve used in wet-pipe automatic sprinkler systems. It combines one-way water flow control with alarm initiation: when one or more sprinklers operate and create sustained water flow, the valve allows water to pass through the alarm trim and activates hydraulic and/or electrical alarm devices. The clapper also helps prevent reverse water flow from the sprinkler piping back toward the supply.

A wet pipe alarm check valve is normally installed vertically and is intended for buildings where the sprinkler pipework remains filled with water and freezing conditions are not expected. Available models include flanged, grooved and combination-end configurations, with different sizes, pressure ratings and approval options.

Specification:

Product Type: Wet Alarm Check Valve

Brand: Any

Origin: China

System: Wet-Pipe Automatic Sprinkler

Nominal Size: 150 & 100 NB

Working Pressure: 175 PSI

Pressure Range: 21 PSI TO 250 PSI

Testing Pressure: 350 PSI

Main Function: Check + Alarm Initiation

Material: Cast or Ductile Iron

Connections: Flanged / Grooved

Installation: Vertical

Alarm Options: Water Motor / Pressure Switch

Retard Chamber: Optional on suitable systems

Certification: UL / FM Options

Features of Wet Alarm Check Valve

1. Automatic alarm initiation during sustained sprinkler water flow
2. Integrated check-valve function
3. Prevents reverse water flow
4. Designed for wet-pipe sprinkler systems
5. Vertical installation configuration
6. Flanged and grooved connection options
7. Ductile iron or cast-iron body options
8. Corrosion-resistant coating options
9. Pressure gauge connections
10. Drain and test arrangements
11. Retard chamber options
12. Water motor alarm gong options
13. Alarm pressure switch compatibility
14. Available in multiple nominal sizes
15. UL Listed / FM Approved options available

Benefits of Wet Alarm Check Valve

Automatic Fire Alarm Initiation

The primary benefit of an Alarm Check Valve is its ability to recognize sustained water movement caused by sprinkler operation and initiate a hydraulic or electrical alarm.

Prevents Reverse Flow

The valve's check function helps prevent water from flowing backward from the sprinkler system into the upstream supply piping.

Rapid Fire Event Notification

When a sprinkler opens because of a fire, the resulting flow causes the alarm valve to operate, allowing connected alarm equipment to provide local and/or electrical notification.

Supports Wet-Pipe System Reliability

Because the sprinkler piping remains water-filled, a correctly selected wet system alarm check valve can provide a ready water path whenever a sprinkler activates.

Helps Reduce False Alarms

For systems subject to variable water pressure, a suitable retard chamber or bypass arrangement can help prevent pressure fluctuations from unnecessarily triggering the alarm.

Advantages of Wet Alarm Check Valve

1. Combines check and alarm functions
2. Automatic hydraulic alarm capability
3. Electrical alarm integration
4. Reverse-flow protection
5. Suitable for wet sprinkler networks
6. Multiple connection configurations
7. Wide size availability
8. Various pressure classes
9. Retard chamber compatibility
10. Water motor alarm compatibility
11. Pressure switch compatibility
12. Certified fire-protection options
13. Durable valve-body construction
14. Practical inspection and maintenance arrangement

Applications of Wet Alarm Check Valve

1. Wet pipe sprinkler systems
2. Commercial buildings
3. Industrial facilities
4. Factories
5. Garment factories
6. Warehouses
7. Shopping malls
8. Hospitals
9. Hotels
10. High-rise buildings
11. Offices
12. Institutional buildings
13. Fire pump rooms
14. Automatic fire suppression networks

Installation of Wet Alarm Check Valve

Proper installation is essential for the dependable operation of a Wet Alarm Check Valve. Commercial fire-protection manufacturers generally specify vertical mounting for these valves.

Important installation considerations include:

1. Correct valve orientation
2. Compatible pipe diameter
3. Proper flange or groove connection
4. Approved gasket selection
5. Correct trim configuration
6. Pressure gauge installation
7. Drain connection
8. Alarm device connection
9. Retard chamber arrangement where required
10. Accessible maintenance clearance
11. Post-installation functional testing
12.


The alarm valve should be installed according to the manufacturer's installation manual, approved fire protection drawings and applicable authority requirements.

Retard Chamber & Alarm Trim

A Wet Alarm Check Valve may be supplied with a retard chamber where the water supply can experience temporary pressure fluctuations. The chamber provides a delay mechanism intended to reduce nuisance alarm activation caused by short-duration surges rather than genuine sprinkler flow.

Depending on the selected assembly, additional components may include:

1. Water motor alarm gong
2. Alarm pressure switch
3. Pressure gauges
4. Drain valve
5. Test-and-alarm valve
6. Bypass arrangement
7. Trim isolation valves

Flanged & Grooved Options

Fire sprinkler projects may require different pipe connection methods. A Wet Alarm Check Valve can be available with:

1. Flange × Flange
2. Flange × Groove
3. Groove × Groove
4.


For example, Weflo lists separate alarm check valve configurations for flange-by-flange, flange-by-groove and groove-by-groove arrangements.

Another current wet alarm valve range specifies flange/flange and groove/groove body options with ANSI 150 or PN16 flange connections.

The selected valve connection must match the fire sprinkler piping specification.

Why Choose Wet Alarm Check Valves?

Choose a Wet Alarm Check Valve when a wet-pipe automatic sprinkler system requires both dependable water-flow control and automatic fire alarm initiation.

Its check-valve action supports one-way water movement, while the alarm trim can activate hydraulic and/or electrical alarm devices when sustained sprinkler flow occurs. Modern UL Listed and FM Approved versions are available in multiple sizes and connection configurations for fire protection projects.

For a reliable installation, consider the valve's pressure rating, connection type, pipe diameter, approval status, trim arrangement and compatibility with the complete sprinkler system.

Conclusion

The Wet Alarm Check Valve is a key component of many wet-pipe automatic sprinkler systems, combining one-way water control with automatic alarm initiation when sustained sprinkler flow occurs. Its availability in multiple sizes, connection styles, pressure ratings and certified configurations makes it adaptable to a wide range of commercial and industrial fire protection projects.

For procurement in Bangladesh or elsewhere, select the exact model according to the approved sprinkler design, hydraulic requirements, connection standard, pressure class and required certification.
